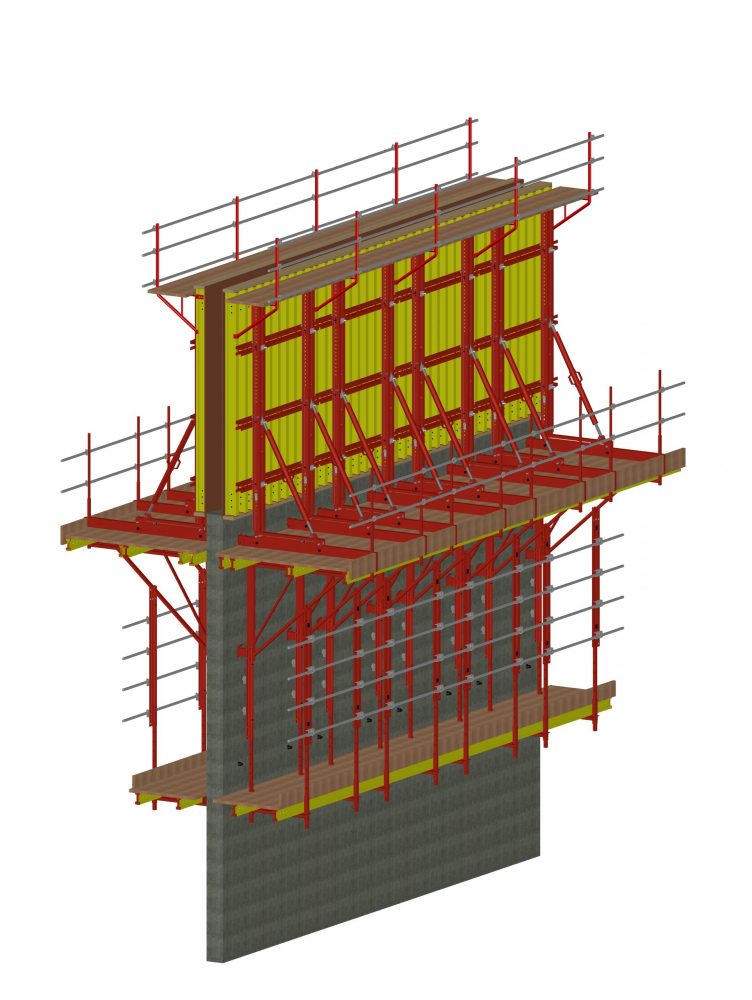

OCTOCLIMB – CRANE CLIMBING SYSTEM

K.U.S OCTOCLIMB System is a specialized type of Cantilever Bracket formwork for vertical concrete structures. It can be proficiently operated by a tower crane.

The use of OCTOCLIMB System ensures significant optimization of time and resources. It is an effective solution for high-rise construction and circular structure which is very repetitive in nature.

The OCTOCLIMB System is consists of wall formwork, Climbing Bracket, Waler Back, Retraction Carriage Unit, Anchor Cones, Wind Bracing Belt and other accessories. K.U.S Climbing Bracket System can be combined with any kind of wall formwork system.

K.U.S provides the following range of climbing brackets

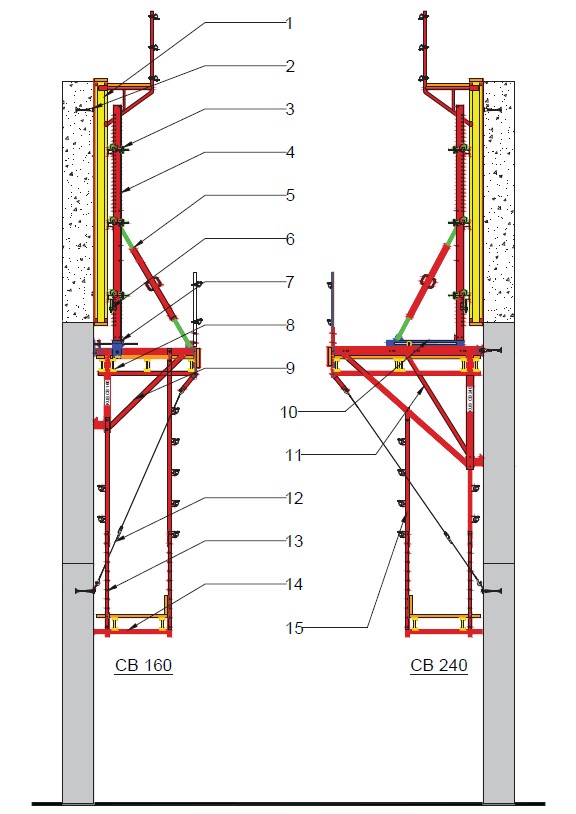

Climbing Bracket – CB 240
Climbing Bracket – CB 160

System Features:
Max. Formwork height up to 5.0 m.
Very few components can be assembled and operated with ease.
Single triangle cantilever bracket is used to form the working platform and Formwork Support.
The OCTOCLIMB System has high versatility and can be used in different layouts, heights, and very compatible with other systems.
Sustainable for any kind of wind zone
Has a high level of safety features with its large working space in front and behind the formwork ensured by guardrail post.
